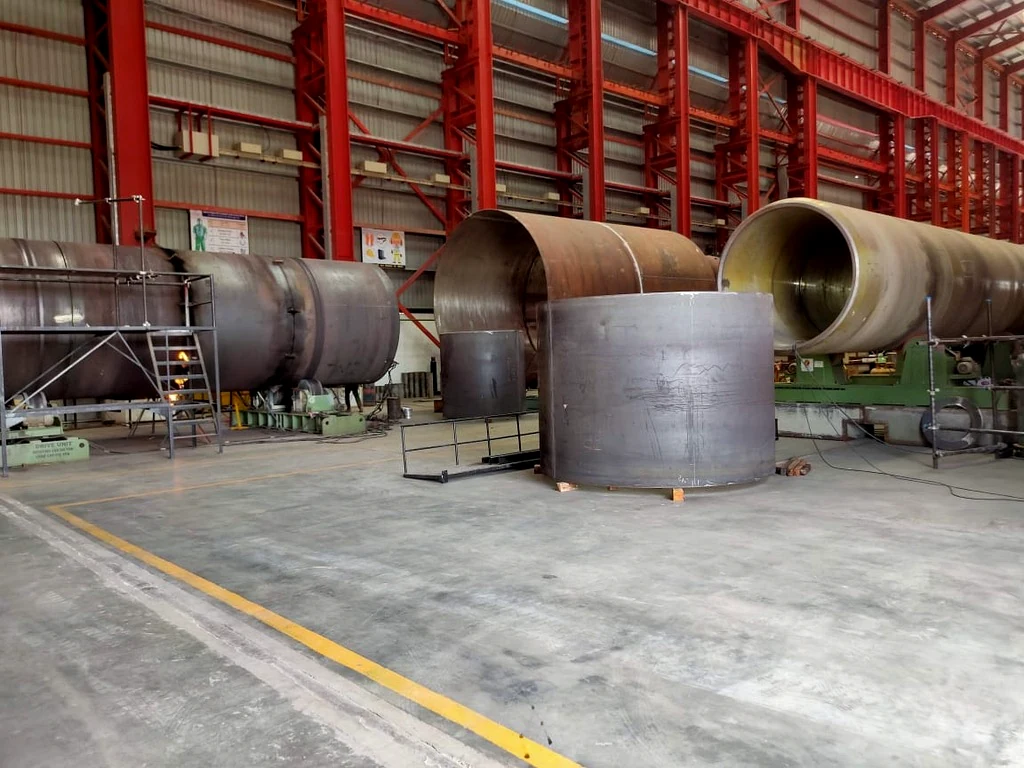

Heavy Plate Forming
Rolling and forming of thick-wall shell sections with controlled dimensional checks.
Flagship Heavy Fabrication Project
HP Nitrogen Buffer Vessels
Kheda, Gujarat • Job Nos. V-1307 & V-1308 • Completed 2024–2025
TOTAL FABRICATIONApprox. 200 MT
MAXIMUM THICKNESS164 mm
MAXIMUM ID2500 mm
MAXIMUM LENGTH13.030 m
Project Overview
Precision fabrication of heavy-wall pressure vessels.
Cosmo Engineering Company executed fabrication and testing support for two HP Nitrogen Buffer Vessels at the Kheda manufacturing facility. The work required heavy plate forming, controlled welding, precision fit-up, dimensional verification and coordinated quality inspections.
Technical Data
V-1307: Length 12.480 m • ID 2500 mm • Thickness 164 mm
V-1308: Length 13.030 m • ID 1800 mm • Thickness 120 mm
Assembly & Welding

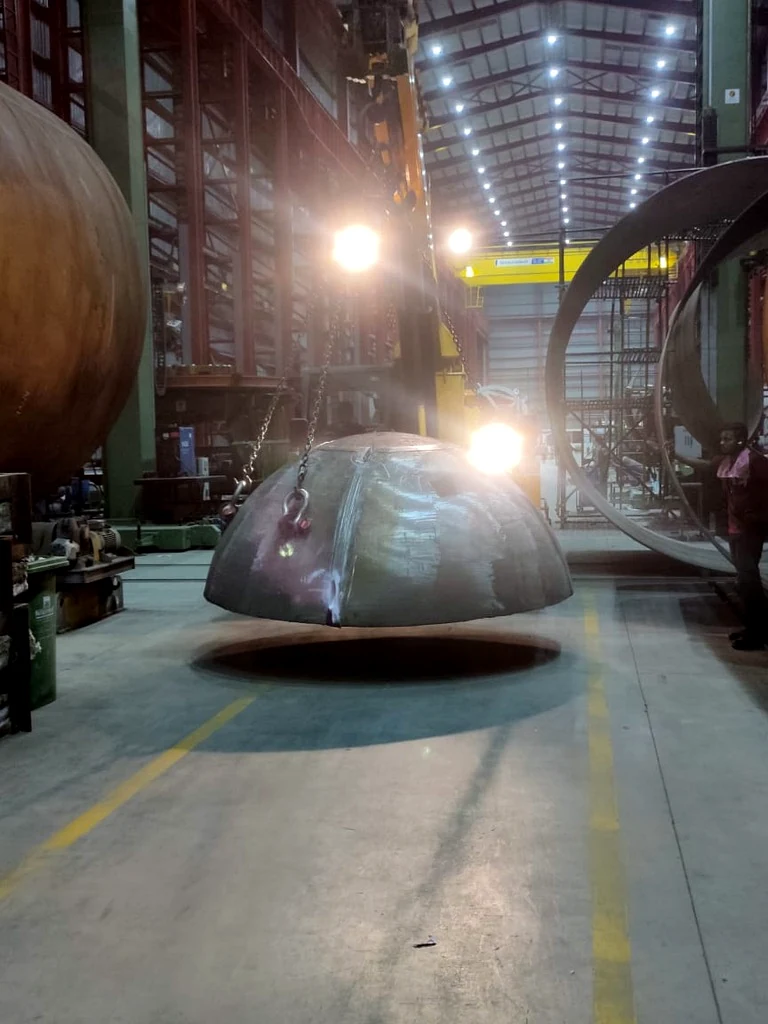

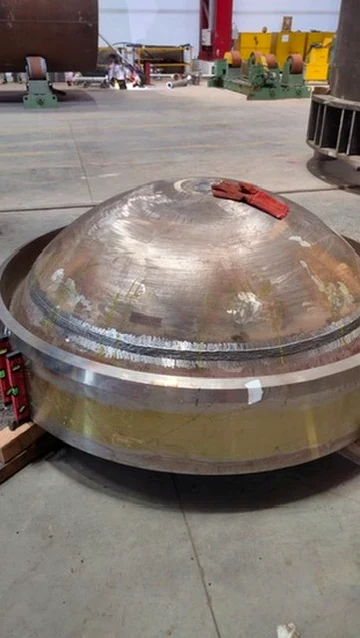

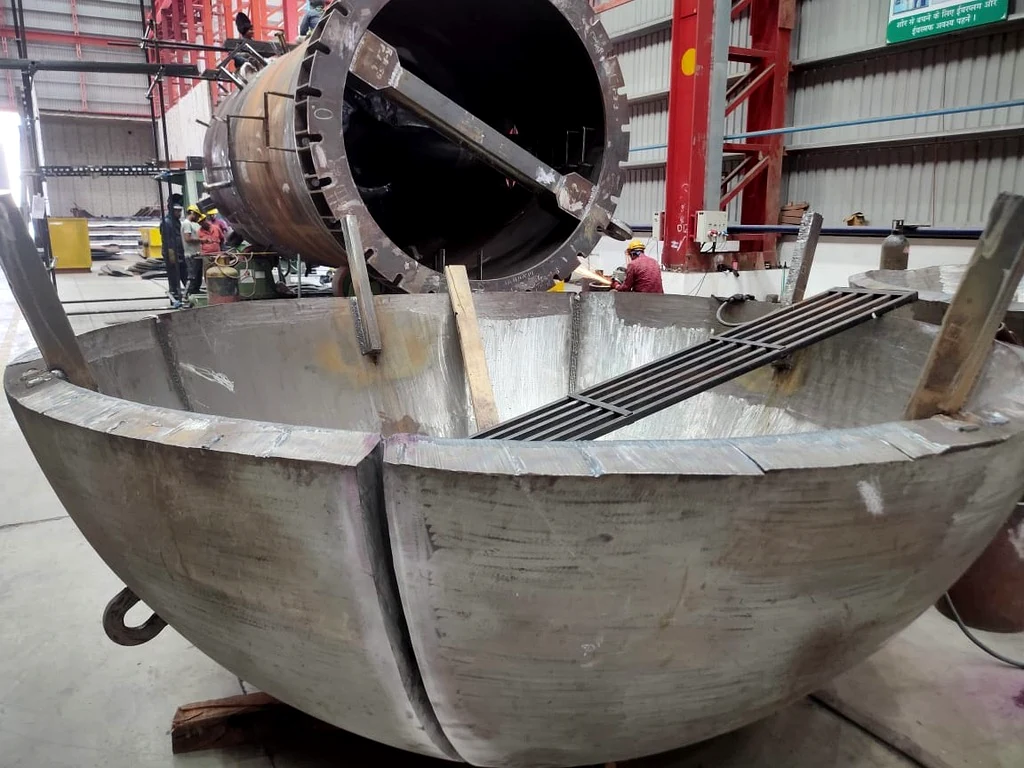

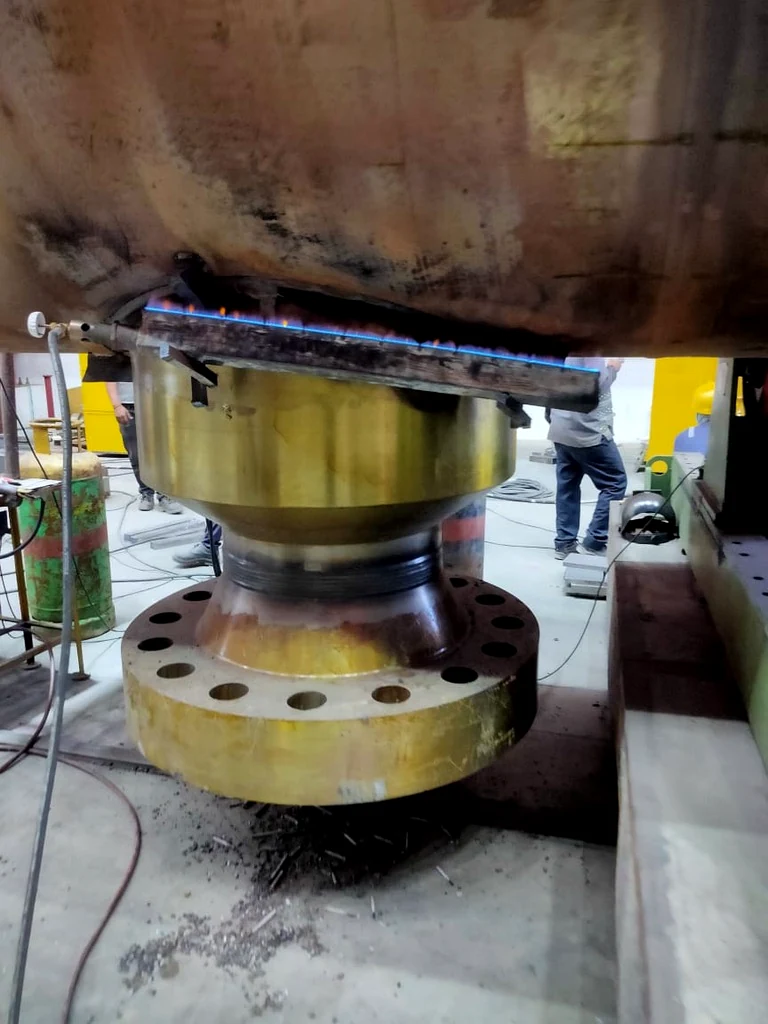

Dished-end fit-up, circumferential and longitudinal welding, internal component work and inspection preparation.
Testing & Completion
Dimensional verification, NDT coordination, hydrotest preparation, final inspection and project completion.
Project Gallery
Heavy engineering in action.
